VISIO 2-1 tunnel insert

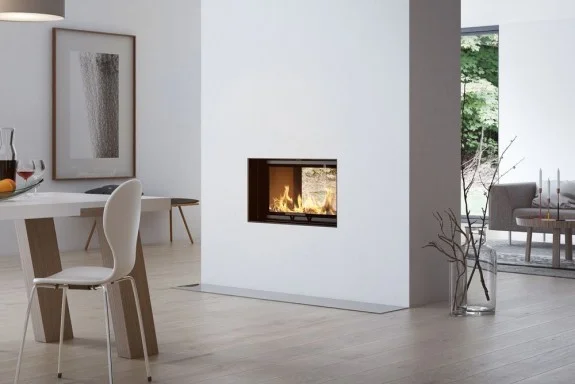

RAIS Visio Tunnel 2:1 makes for a fantastic connection between two individual rooms – or in a partition wall dividing such

rooms. As you'll be able to literally see – through the fire! RAIS Visio 2:1 is practically invisible.

Technical Data

Dimensions (W-D-H)
External dimensions (W-D-H) in mm: 962-552-148
Combustion chamber inner dimensions (W-D-H) in mm: 694-222-440
Installation dimensions (W-D-H) in mm: 782-438
Outer frame dimensions (W-D-H) in mm: 781-444/788-443
Distance from centre to the back edge of the top plate in mm: 200

Output
Rated output: 5,8
Output (min-max) in kWh: 5-9

Weight
Weight in kg: 235

Distance to flammable material
To side wall in mm: 350
To the ceiling in mm: 1182
To the side in mm: 350
To the floor in mm: 475
In front of the floor in mm: 300
To furniture: 1200

Specifications
Glass door with black edge: Standard
Glass door with rustproof edge: Accessory
Cover frame, black: Accessory
Cover frame, rustproof: Accessory

Rais Brochure Download

The wide design strikes a lasing impression, which is only emphasised by the clear panes. A slim structure makes it easy to fit into the wall.

The elegant expression is emphasised by the vertical sliding system, which ensures top-of-the-line fire. The stove also generates

even and pleasant heat – all in all, solid everyday luxury!
