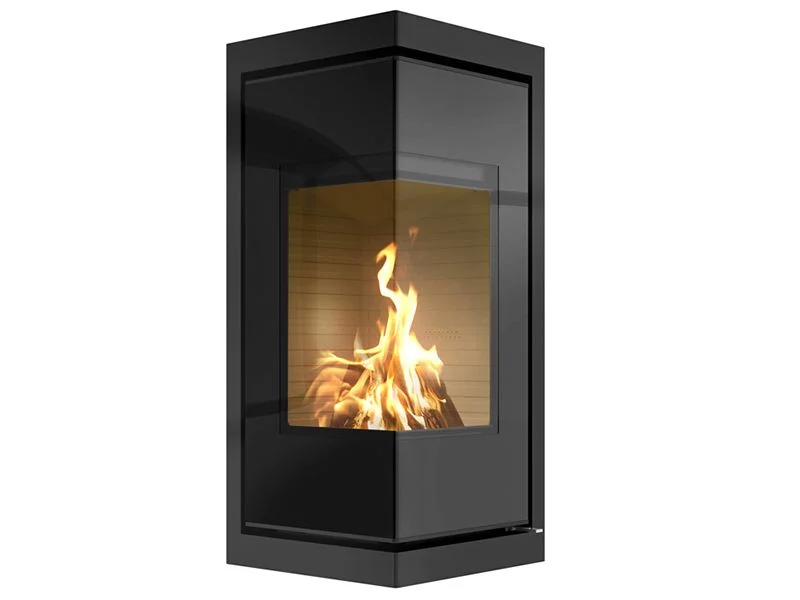

Q-Be Wood Burning Insert Fireplace

This elegant insert rounds off a corner in the most beautiful of ways and is equipped with a single-piece glass door. Q-Be is much more than just one fine corner in your home, it is a sign of good taste in the spirit of minimalism. The large glass door offers a fantastic view of the flames.

Technical Data

Dimensions (W-D-H)
External dimensions (W-D-H) in mm: 399 - 399 - 903 mm
Combustion chamber inner dimensions (W-D-H) in mm: 239 - 239 - 505 mm
Outer frame dimensions (W-D-H) in mm: 427 - 424 - 970 mm
Flue outlet (diameter): 150 mm

Output
Output (min-max) in kWh: 4-8 kW
Heating (at -20°C) in m2: 60 - 120 m2
Efficiency in %: 80%
Particulates in g/kg: 1,4 g/kg

Distance to flammable material
To the ceiling in mm: 455
To the side in mm: 0
To the floor in mm: 0
In front of the floor in mm: 300
To furniture: 750

Specifications
Steel door with glass: Standard
Glass door: Accessory
Flue outlet, top: Standard
AirSystem: Standard
CleverAir: Standard

Rais Brochure Download

The handle is located under the stove so nothing disrupts the simplicity of the design. The Q-Be insert can be ordered either with a glass door or a glass door in a steel frame.

Furthermore, this stove is equipped with CleverAir which adjusts the air flow and guarantees optimal combustion.

Rais Q-Be has excellent combustion of 80% and first-rate environmental data.
